Troubleshooting Vehicle Immobiliser Issues:A Guide To Using the TDB003 Proximity System Tester

When a vehicle refuses to start, especially if the cause is an immobiliser-related issue, it can be a frustrating situation for both the motorist and the technician who is entrusted to solve the problem. Immobiliser systems are intricate and often integrated with a vehicle’s electronics, using a combination of technologies such as radio frequency identification (RFID), transponders, or unique codes to prevent ignition. The complexity of these systems makes diagnosing problems more challenging, so overcoming immobiliser issues requires specialist knowledge and tools.

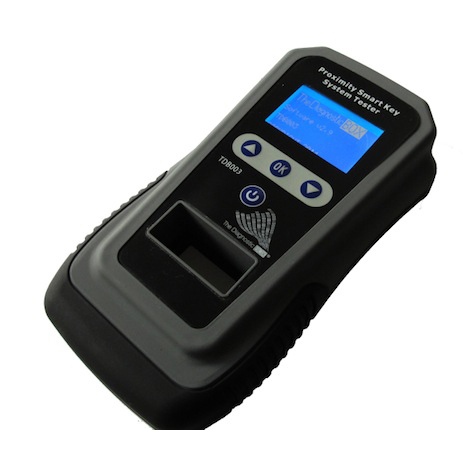

Diagnosing the issue is easier, however, if you are equipped with the right tools, particularly the TDB003 Proximity System Tester that can quickly and efficiently identify problems within the immobiliser system. These are the key steps when using the TDB003 to troubleshoot immobiliser issues on vehicles that won’t start:

Select The Transponder Test

Begin by selecting the transponder test on the TDB003, which initiates the process of identifying the frequency and signal indication of the transponder.

Obtain A Transponder Reading

Place the vehicle key either in the designated key slot or on top of it to obtain a transponder reading. As you do so, listen for the frequency of the transponder and pay attention to any signal indications, often conveyed through bleeps or audible cues.

Select Remote RF Test

Next, progress to the Remote RF Test. Hold the remote at the base of the TDB003 and press the buttons on the remote or smart key. This test confirms the functionality of all buttons on the remote and ensures the frequency is correct.

Proximity Full Test For Proximity/Smart Key Vehicles

For vehicles equipped with proximity or smart keys, select the proximity full test. Hold the key at the base of the TDB003 and then bring the TDB003 close to the door antenna. Activate the proximity signal by pressing the door button or pulling the door handle, depending on the vehicle. Look for signals on both the top and bottom graphs.

Coil Antenna Test

Move to the coil antenna test. For standard transponder keys, place the TDB003 as close to the ignition as possible and insert the key, turning the ignition on. Listen for a data signal indicating that the vehicle is transmitting the signal properly.

Testing Proximity/Smart Key Systems

Use the coil antenna test to check the signal from the start button for proximity/smart key systems. Different systems might use the start button for emergency start procedures or have specific locations. The TDB003 coil antenna test accommodates these variations for comprehensive testing.

When troubleshooting immobiliser issues, it is crucial to meticulously follow these steps to identify any problems. The TDB003 is a powerful tool in the process, providing invaluable insights into transponder functionality, remote key performance, and proximity system health.

Find Out More

For more information about the TDB003 Proximity System Tester, please get in touch with Advanced Keys today.
